Catalogue

Product catalogue: all components with article number and list price

Probes, distribution systems, tools and accessories for the Splitpipe system, for drilling contractor, installers and planners. Prices are list prices; Orders are made through your contact person, not through a shopping cart.

List prices in CHF / EUR (currently 1:1). All prices are excluding VAT, customs and freight costs. Prices and stocks are valid until revocation. Ours are ours. AGB.

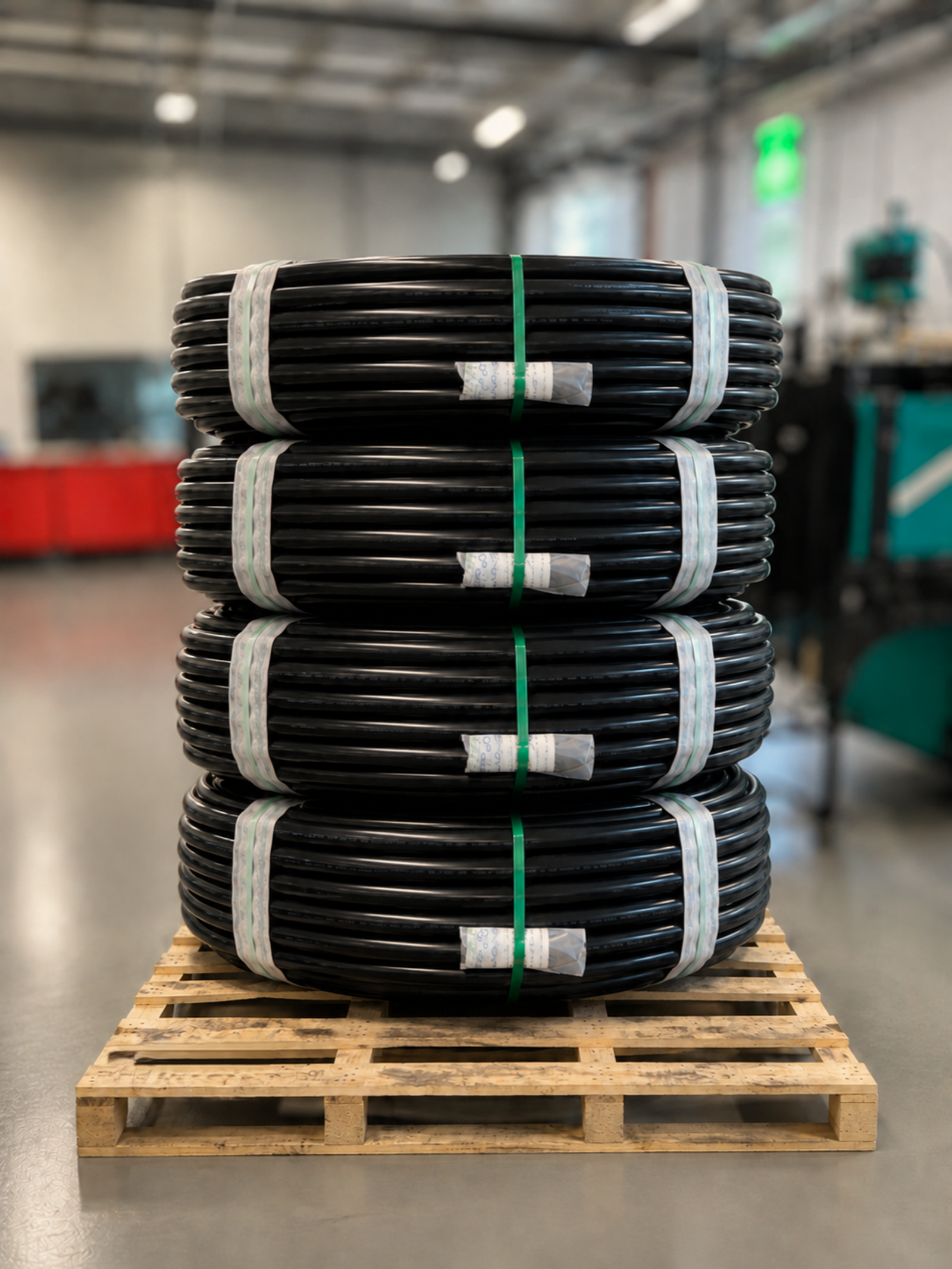

separatus borehole heat exchanger

51 x 3,1 mm | PE 100 RC | SDR 17 | PN 10

Article number:In stockList price

separatus borehole heat exchanger EWSO51030
1 1 51 030 17
CHF / EUR 405.00
separatus borehole heat exchanger EWSO51035
1 1 51 035 17
CHF / EUR 472.50
separatus borehole heat exchanger EWSO51040
1 1 51 040 17
In stock
CHF / EUR 540.00
separatus borehole heat exchanger EWSO51045
1 1 51 045 17
CHF / EUR 607.50
separatus borehole heat exchanger EWSO51050
1 1 51 050 17
In stock
CHF / EUR 675.00

Show another 14 articles

separatus borehole heat exchanger EWSO51055
1 1 51 055 17
CHF / EUR 742.50
separatus borehole heat exchanger EWSO51060
1 1 51 060 17
In stock
CHF / EUR 810.00
separatus borehole heat exchanger EWSO51065
1 1 51 065 17
CHF / EUR 877.50
separatus borehole heat exchanger EWSO51070
1 1 51 070 17
CHF / EUR 945.00
separatus borehole heat exchanger EWSO51075
1 1 51 075 17
CHF / EUR 1'012.50
separatus borehole heat exchanger EWSO51080Z
1 1 51 080 17
In stock
CHF / EUR 1'080.00
separatus borehole heat exchanger EWSO51085
1 1 51 085 17
CHF / EUR 1'147.50
separatus borehole heat exchanger EWSO51090
1 1 51 090 17
CHF / EUR 1'215.00
separatus borehole heat exchanger EWSO51095
1 1 51 095 17
CHF / EUR 1'282.50
separatus borehole heat exchanger EWSO51100
1 1 51 100 17
In stock
CHF / EUR 1'350.00
separatus borehole heat exchanger EWSO51110
1 1 51 110 17
In stock
CHF / EUR 1'485.00
separatus borehole heat exchanger EWSO51120
1 1 51 120 17
In stock
CHF / EUR 1'620.00
separatus borehole heat exchanger EWSO51130
1 1 51 130 17
In stock
CHF / EUR 1'755.00
separatus borehole heat exchanger EWSO51140
1 1 51 140 17
In stock
CHF / EUR 1'890.00

Further lengths are available on request

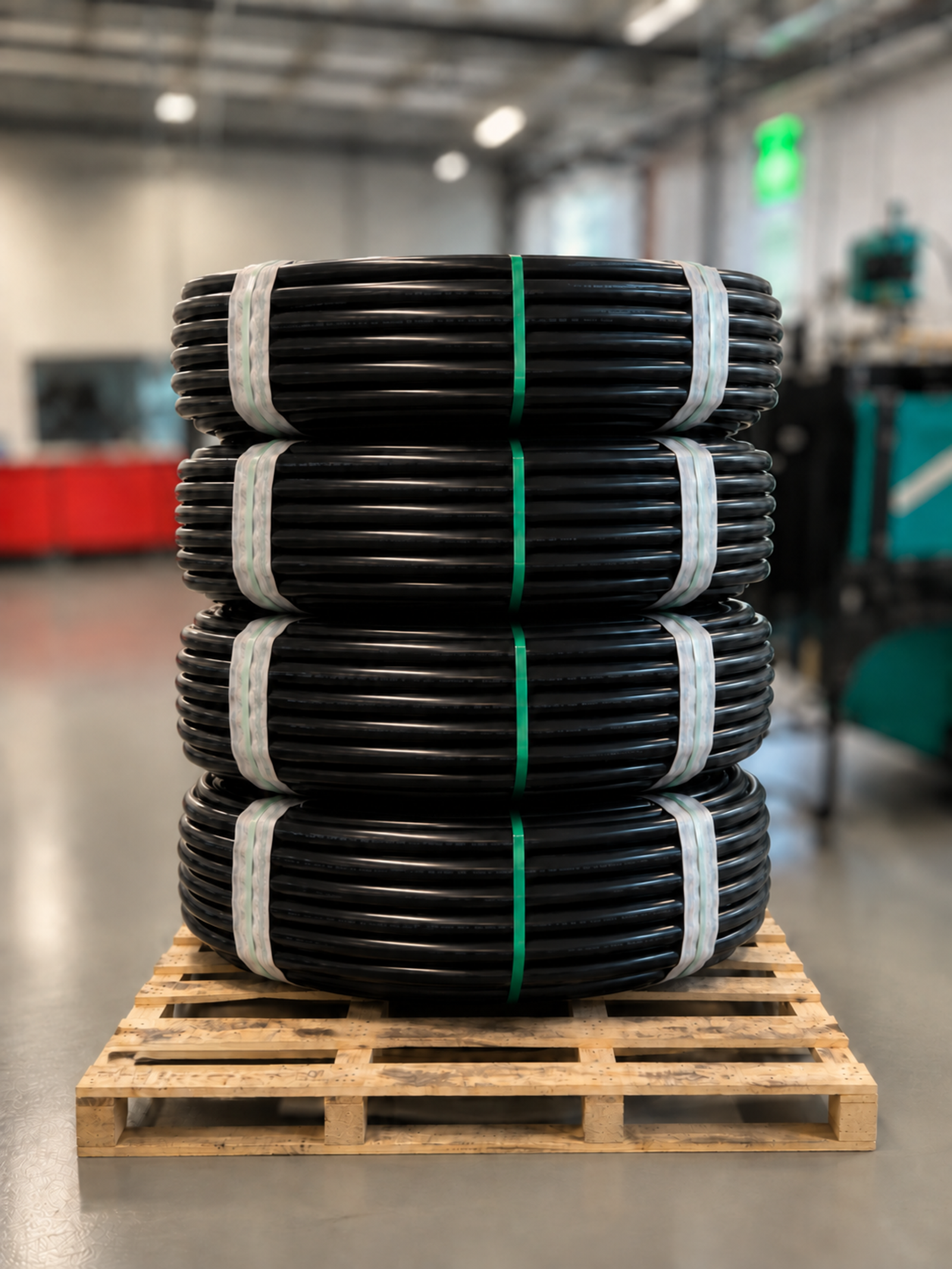

separatus pipe

51 x 3,1 mm | PE 100 RC | SDR 17 | PN 10

Article number:In stockList price

separatus pipe Bundle EWSR5150
2 1 51 050 17
In stock
CHF / EUR 640.00
separatus pipe Bundle EWSR5175
2 1 51 075 17
CHF / EUR 960.00
separatus pipe Bundle EWSR51100
2 1 51 100 17
In stock
CHF / EUR 1'280.00
separatus pipe Bund EWSR51000
price per metre pipe, available on request
2 1 51 000 17
CHF / EUR 12.80

Further lengths are available on request

separatus rod

Same probe tube as straight rod instead of as a collar, in two lengths.

Article number:In stockList price

separatus pipe rod EWSR51005
2 2 51 005 17
CHF / EUR 67.50
separatus pipe rod EWSR51010
2 2 51 010 17
CHF / EUR 135.00

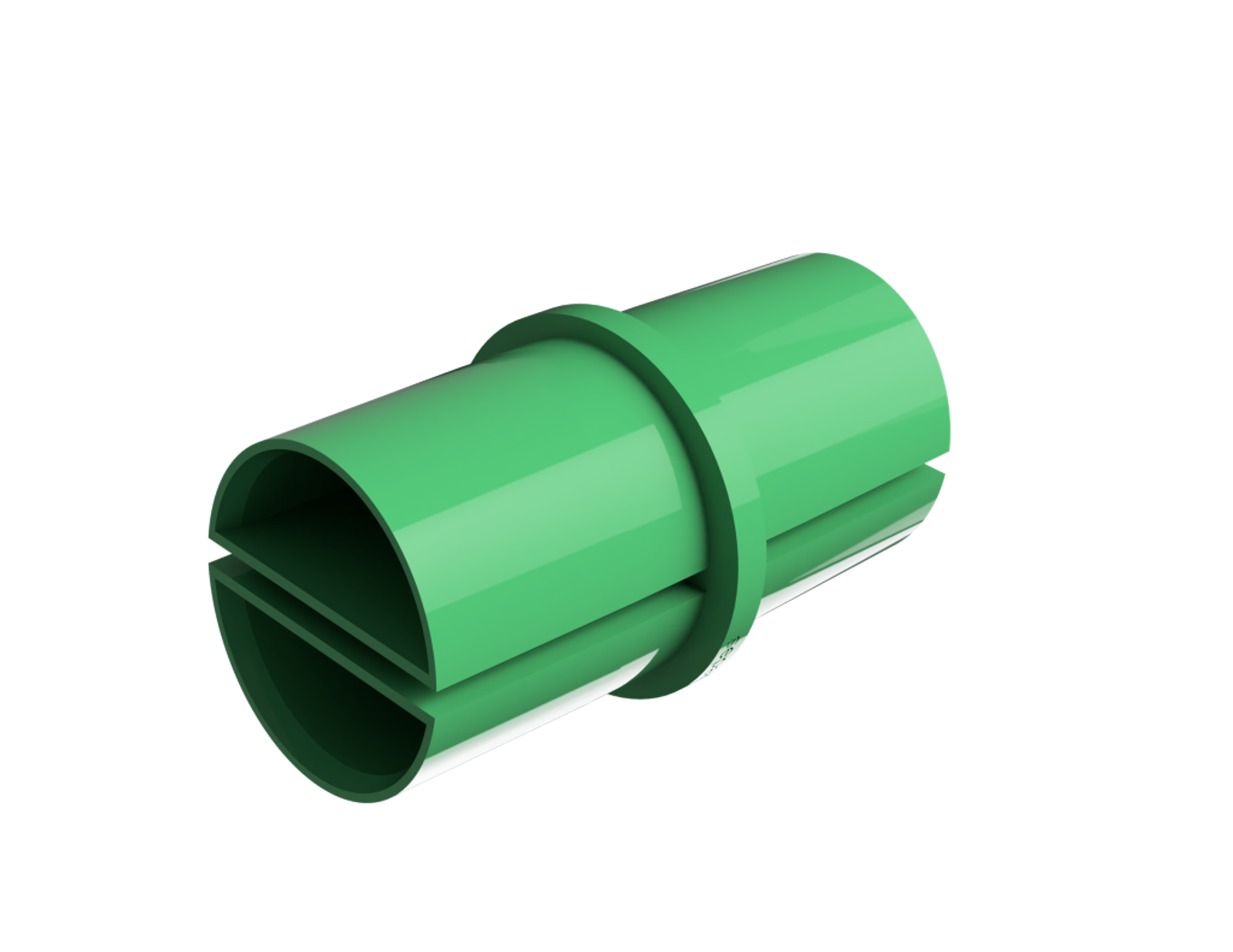

separatus components

probe heads, probe feet, connectors and weld fittings, i.e. everything between probe tube and connection.

Article number:In stockList price

separatus BHE head 25 (with 2x25 mm PE connectors)
3 1 51 025 01
In stock
CHF / EUR 85.00
separatus BHE head 32 (with 2x32 mm PE connectors)
3 1 51 032 01
In stock
CHF / EUR 87.00
separatus BHE head 40 (with 2x40 mm PE connectors)
3 1 51 040 01
In stock
CHF / EUR 93.00
separatus BHE base incl. E-socket 51
3 1 51 101 01
In stock
CHF / EUR 69.00
separatus BHE base
3 1 51 101 02
In stock
CHF / EUR 49.60

Show another 12 articles

separatus CONNECTOR 51S (pipe to pipe)
3 2 51 000 01
In stock
CHF / EUR 19.80
separatus CONNECTOR 51H (BHE head to tube)
3 2 51 000 02
In stock
CHF / EUR 19.80
separatus electrofusion fitting 51 PN16 SDR 11
3 2 51 000 11
In stock
CHF / EUR 29.00
FRIALEN electrofusion fitting 32 PN16 SDR 11
3 2 32 000 11
In stock
CHF / EUR 9.50
FRIALEN electrofusion fitting 32/45° PN16 SDR 11
3 2 32 045 11
In stock
CHF / EUR 25.70
FRIALEN electrofusion fitting 32/90° PN16 SDR 11
3 2 32 090 11
In stock
CHF / EUR 25.70
FRIALEN electrofusion fitting 40 PN16 SDR 11
3 2 40 000 11
In stock
CHF / EUR 9.85
FRIALEN electrofusion fitting 40/45° PN16 SDR 11
3 2 40 045 11
In stock
CHF / EUR 30.35
FRIALEN electrofusion fitting 40/90° PN16 SDR 11
3 2 40 090 11
In stock
CHF / EUR 30.35
separatus 90° connection head
3 3 51 090 01
In stock
CHF / EUR 75.85
separatus tee / T-pieceZ
3 3 51 090 02
In stock
CHF / EUR 78.30
separatus splitter
3 3 51 090 03
In stock
CHF / EUR 124.40

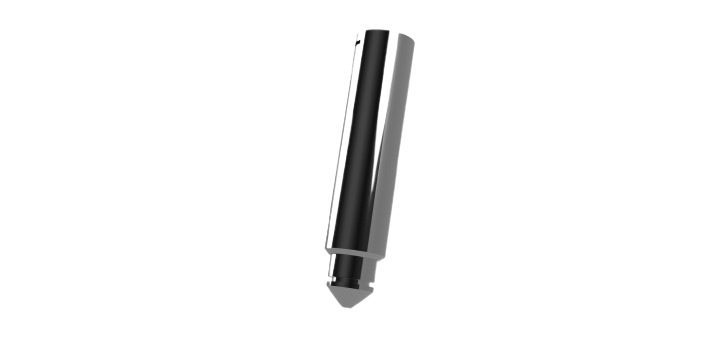

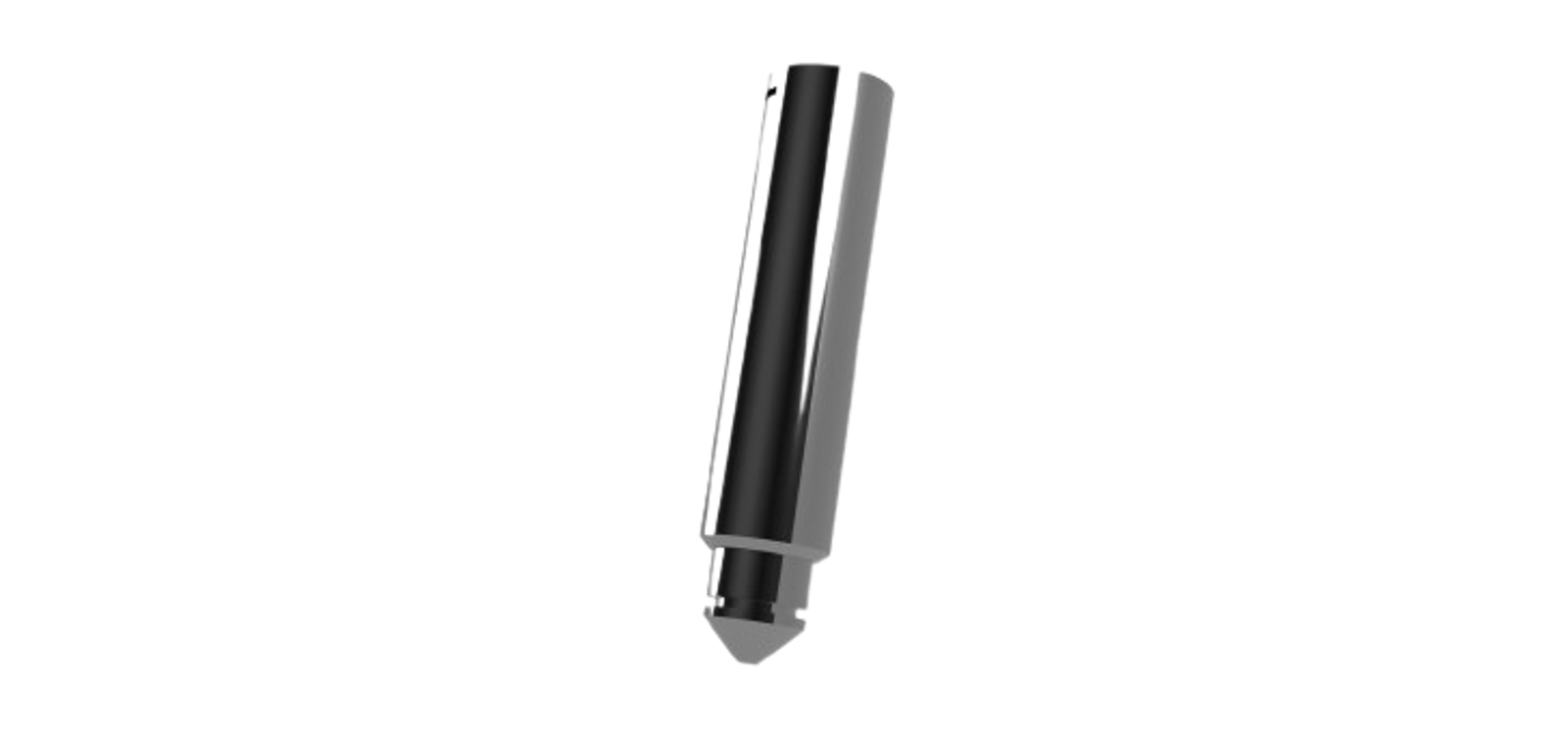

separatus Installation aid

probe weights and flush-drilling tip for installation in borehole.

Article number:In stockList price

separatus BHE installation weight 15 kg
4 5 70 015 01
In stock
CHF / EUR 82.00
separatus BHE installation weight 20 kg
4 5 70 020 01
In stock
CHF / EUR 99.00
separatus flush-drilling tip
4 5 60 002 02
In stock
CHF / EUR 80.00

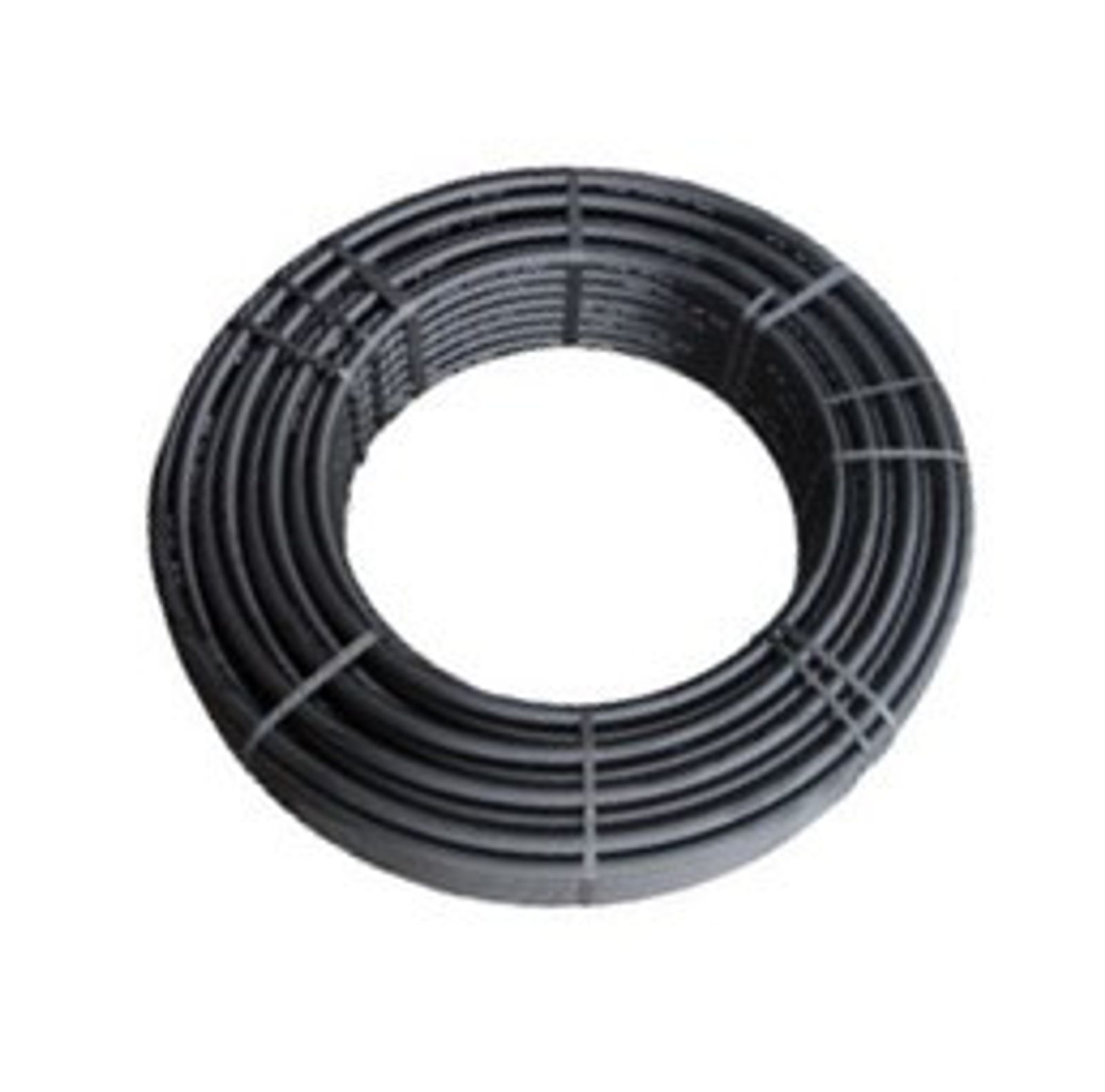

separatus connecting pipes

Geothermal tube from 32 to 63 mm in PN 16, as a coil and as a rod, for the line between probe field and heat pump.

Article number:In stockList price

Geothermal tube 32x2.9 mm 50 m PN 16
5 1 32 050 16
In stock
CHF / EUR 118.00
Geothermal tube 40x3.7 mm 50m PN 16
5 1 40 050 16
In stock
CHF / EUR 181.60
Geothermal tube 40x3.7 mm 100m PN 16
5 1 40 100 16
In stock
CHF / EUR 363.20
Geothermal tube 50x4.6 mm 50m PN 16
5 1 50 050 16
CHF / EUR 281.60
Geothermal tube rod 40x3.7 mm 5m PN 16
5 2 40 005 16
CHF / EUR 18.15

Show another 3 articles

Geothermal tube rod 40x3.7 mm 10 m PN 16
5 2 40 010 16
CHF / EUR 36.30
Geothermal tube rod 50x4.6 mm 10m PN 16
5 2 50 010 16
CHF / EUR 56.30
Geothermal tube rod 63x5.8 mm 10m PN 16
5 2 62 010 16
CHF / EUR 88.90

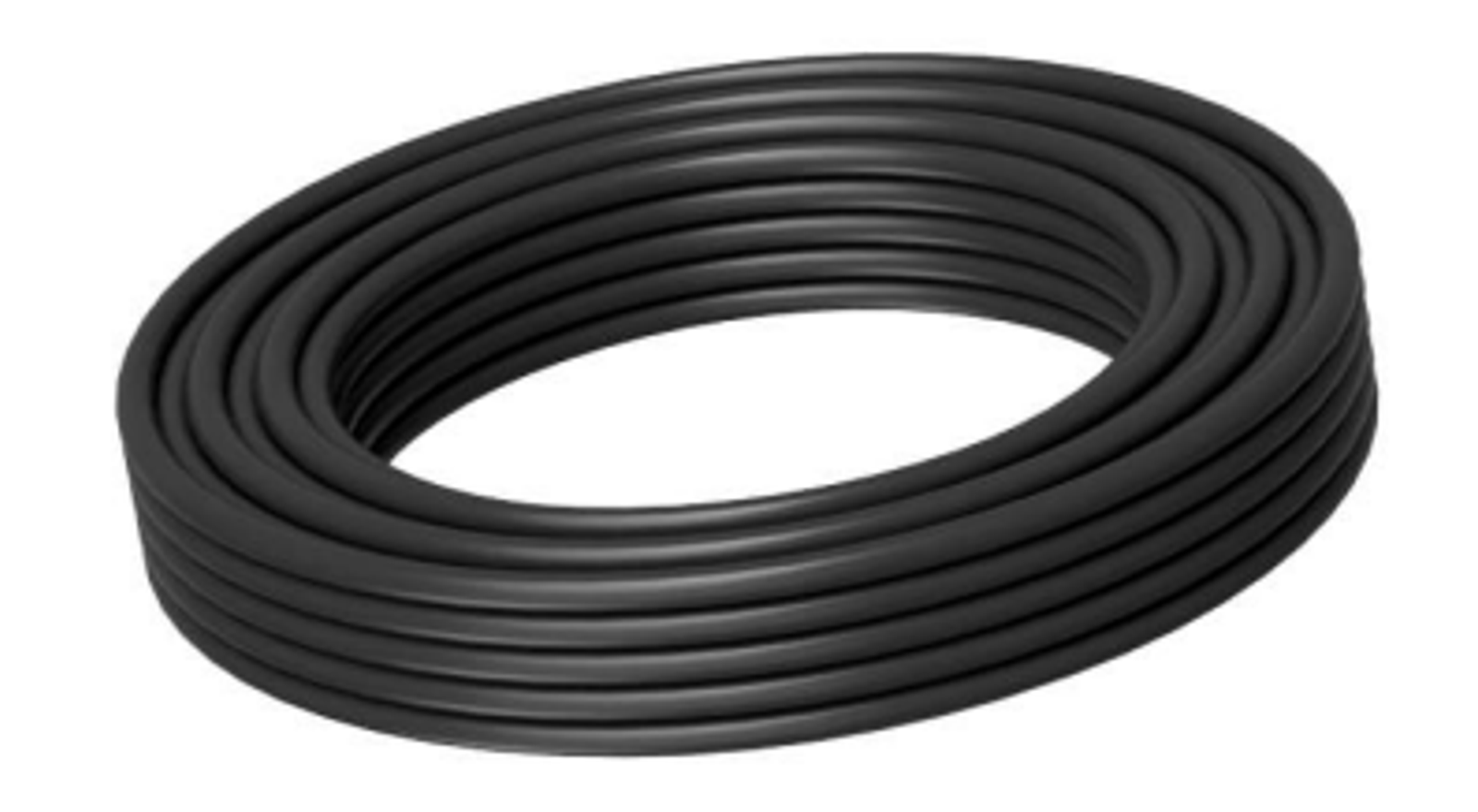

separatus grout injection hose

Tube for the borehole grouting, 25 x 2,3 mm, on roll in eleven lengths from 52 to 152 m.

Article number:In stockList price

grout injection hose 25 x 2.3 mm 52 m role
5 3 25 52 16
CHF / EUR 75.30
grout injection hose 25 x 2.3 mm 62 m role
5 3 25 62 16
CHF / EUR 89.75
grout injection hose 25 x 2.3 mm 72 m role
5 3 25 72 16
CHF / EUR 104.25
grout injection hose 25 x 2.3 mm 82 m role
5 3 25 82 16
CHF / EUR 118.70
grout injection hose 25 x 2.3 mm 92 m role
5 3 25 92 16
CHF / EUR 133.20

Show another 6 articles

grout injection hose 25 x 2.3 mm 102 m role
5 3 25 102 16
CHF / EUR 147.65
grout injection hose 25 x 2.3 mm 112 m role
5 3 25 112 16
CHF / EUR 162.15
grout injection hose 25 x 2.3 mm 122 m role
5 3 25 122 16
CHF / EUR 176.65
grout injection hose 25 x 2.3 mm 132 m role
5 3 25 132 16
CHF / EUR 191.10
grout injection hose 25 x 2.3 mm 142 m role
5 3 25 142 16
CHF / EUR 205.60
grout injection hose 25 x 2.3 mm 152 m role
5 3 25 152 16
CHF / EUR 220.05

Distribution systems

Type description

Structure and selection

Decisive for the selection are three variables: the number of probe circuits (outlets), the connection diameter of the connecting line and the installation location, shaft in the open air or technical room in the building.

Show full type description

Each outlet carries shut-off ball valves and a flow indicator so that the circuits can be individually regulated, flushed and vented. Bars and connections are made of PE and designed for operation with brine / heat transfer fluid.

Extended connections (long connections) are available for distributor assembly; For transfer to the heat pump, connection sets with screw connection or electrofusion coupler are available.

Distribution system from separatus: distribution beams with valves, flow indicators and connection technology

Flow and return manifolds

The distributor beam brings together the probe connections and is mounted in the technical room or in a building-side shaft.

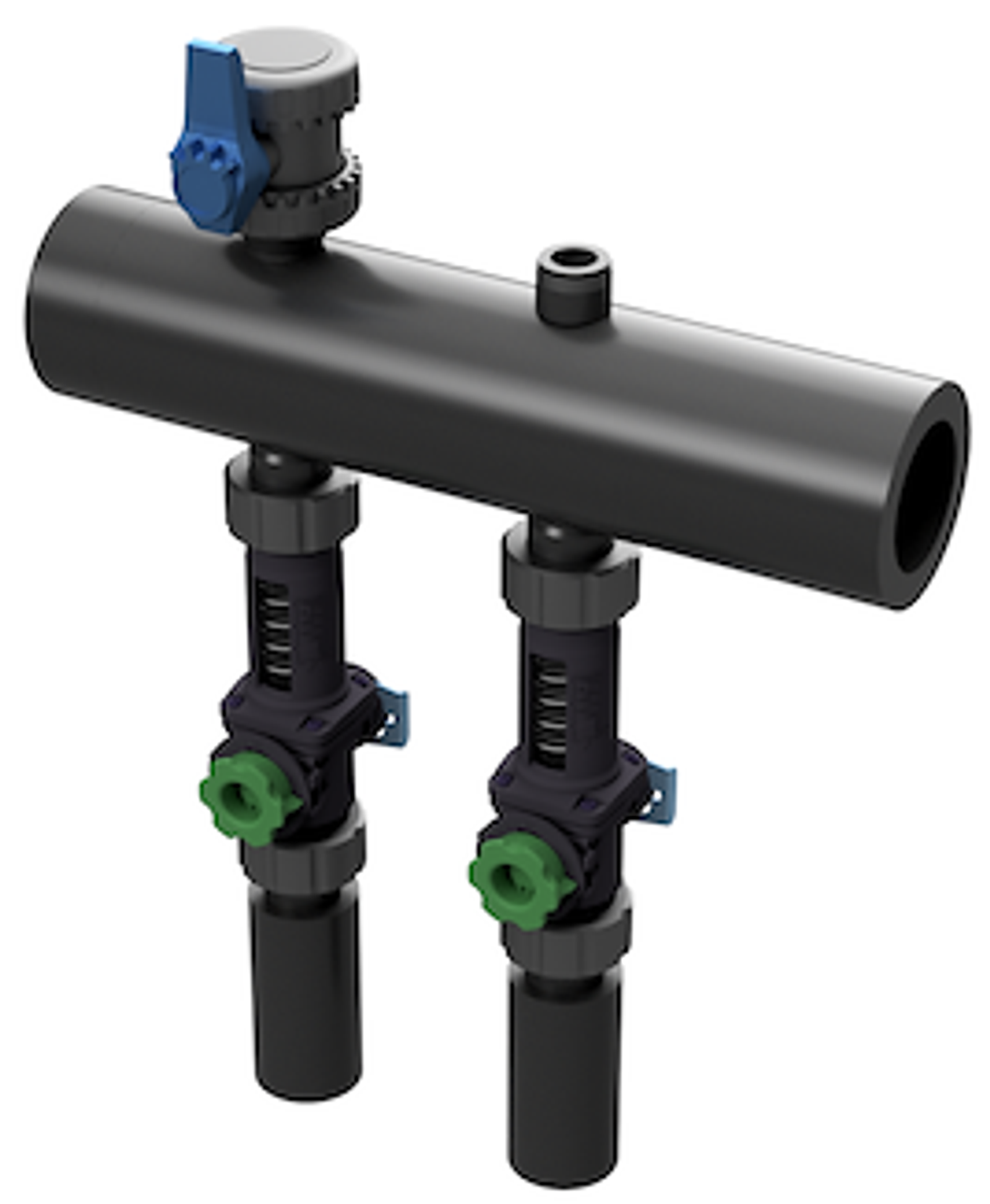

Flow and return manifold standard DA75

Distribution, collector bar standard DA 75 mm Inlineetter type K 5-42 l/min main header / main pipe 63 mm not shut-off capable / isolatable, smooth 2 connections for flushing & venting with 1" AG

Article number:In stockList price

Flow and return manifold standard DA75 - 2-way
2 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 075 2 75
CHF / EUR 1'368.00
Flow and return manifold standard DA75 3-way
3 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 075 3 75
CHF / EUR 1'735.20
Flow and return manifold standard DA75 4-way
4 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 075 4 75
CHF / EUR 2'102.40
Flow and return manifold standard DA75 5-way
5 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 075 5 75
CHF / EUR 2'469.60
Optional: BHE circuit connection
6 075 1 32
CHF / EUR 0.00

Show another 16 articles

Optional: main header / main pipe da 75 mm
6 000 2 75
CHF / EUR 0.00
surcharge / additional charge: 1 Piece BHE circuit connection with long ports with 1 1/4" UW
6 1 000 1
CHF / EUR 44.45
surcharge / additional charge: 1 piece BHE circuit connection with long neck for KH
6 1 000 2
CHF / EUR 34.20
surcharge / additional charge: Combimanometer temperature & pressure welded in
6 3 000 1
CHF / EUR 62.40
surcharge / additional charge: PVC ball valve DN50 with 2 DA63 PE port
For self-assembly, loosely enclosed
6 2 063 1
CHF / EUR 130.85
surcharge / additional charge: 63 mm electrofusion coupler FRIALEN just
6 2 063 2
CHF / EUR 16.15
surcharge / additional charge: GF thread transition 63 mm to 2 " AG
6 2 063 3
CHF / EUR 70.75
surcharge / additional charge: Messing ball valve Giacomo F-F 2" IG / IG
6 2 063 4
CHF / EUR 88.90
surcharge / additional charge: main header / main pipe 63 mm with PVC ball valve DN50
Prefabricated, welded
6 2 063 6
CHF / EUR 439.20
surcharge / additional charge: reduction sleeve 63 mm to 50 mm FRIALEN
6 2 063 5
CHF / EUR 46.00
surcharge / additional charge: PVC ball valve DN 40 with DA50 PE port
Per departure, settled in bulk
6 2 050 1
CHF / EUR 99.55
surcharge / additional charge: 50 mm electrofusion coupler just FRIALEN
6 2 050 2
CHF / EUR 29.00
surcharge / additional charge: Thread transition 50 mm to 1 1/2" AG
6 2 050 3
CHF / EUR 53.20
surcharge / additional charge: Thread transition 50 mm to 1 1/4" AG
6 2 050 31
CHF / EUR 58.50
surcharge / additional charge: Messing ball valve Giacomo F-F 1 1/2" IG / IG
6 2 050 4
CHF / EUR 49.00
surcharge / additional charge: attachment set distributor beam DA75/90
6 3 075 1
CHF / EUR 218.70

* also available for Vario DA90 flow and return manifolds

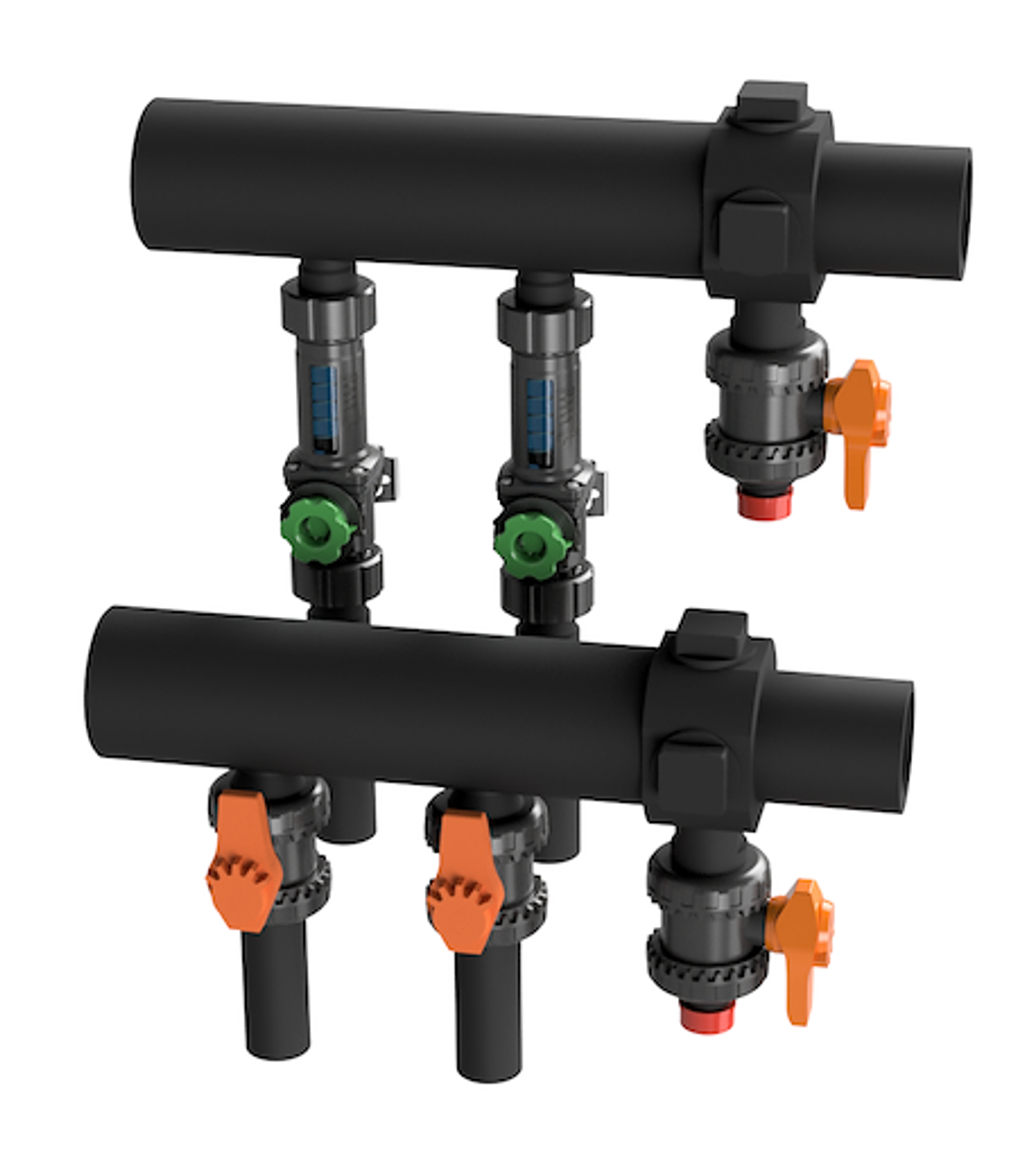

Flow and return manifold Vario DA90

Distribution, collector bar Vario DA 90 mm Inlineetter type K 5-42 l/min main header / main pipe 63 mm not shut-off capable / isolatable, smooth 2 pcs. flushing and venting valves with 1" AG 6 pcs.. 1" threaded plugs

Article number:In stockList price

Flow and return manifold VARIO DA90 2-way
2 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 090 2 63
CHF / EUR 1'476.00
Flow and return manifold VARIO DA90 3-way
3 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 090 3 63
CHF / EUR 1'846.80
Flow and return manifold VARIO DA90 4-way
4 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 090 4 63
CHF / EUR 2'217.60
Flow and return manifold VARIO DA90 5-way
5 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 090 5 63
CHF / EUR 2'588.40
Flow and return manifold VARIO DA90 6-way
6 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 090 6 63
CHF / EUR 2'959.20

Show another 6 articles

Flow and return manifold VARIO DA90 7-way
7 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 090 7 63
CHF / EUR 3'330.00
Flow and return manifold VARIO DA90 8-way
8 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 090 8 63
CHF / EUR 3'700.80
Optional: BHE circuit connection 32 mm, 50 mm
6 090 1 32
CHF / EUR 0.00
surcharge / additional charge: Combimanometer Temperature & Pressure
for self-assembly including 1" to 1/2" thread reduction
6 3 000 12
CHF / EUR 71.10
surcharge / additional charge: 1 pcs.. hand ventilator for VARIO system
for self-assembly including 1" to 1/2" thread reduction
6 3 000 2
CHF / EUR 48.60
surcharge / additional charge: 1 pcs.. 1" to 1/2" thread reduction from PE
6 3 000 3
CHF / EUR 36.00

Distribution shafts

The manifold chamber is a distributor bar in the housing, ready for installation in the ground. Which beam is installed, distinguishes the families: ECO Whiteline 650 wears a standard DA-75 beam, Eco Blueline 600 and GeoSmart L630 wear a DA-90 beam.

manifold chamber ECO Whiteline 650

Distribution, collector bar standard DA 75 mm Inlineetter type K 5-42 l/min main header / main pipe 63 mm not shut-off capable / isolatable , directly led out, smooth 2 pcs. flushing and venting valves with 1" AG cover A35

Article number:In stockList price

manifold chamber ECO Whiteline 650 2-way
2 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 650 2 63
CHF / EUR 3'177.00
manifold chamber ECO Whiteline 650 3-way
3 x BHE circuit connection 40 mm, shut-off capable / isolatable / 2 connections for flushing and venting with 1" AG
6 650 3 63
CHF / EUR 3'643.20
manifold chamber ECO Whiteline 650 4-way
4 x BHE circuit connection 40 mm, shut-off capable / isolatable / 2 connections for flushing and venting with 1" AG
6 650 4 63
CHF / EUR 4'095.00
manifold chamber ECO Whiteline 650 5-way
5 x BHE circuit connection 40 mm, shut-off capable / isolatable / 2 connections for flushing and venting with 1" AG
6 650 5 63
CHF / EUR 4'554.00
manifold chamber ECO Whiteline 650 6-way
6 x BHE circuit connection 40 mm, shut-off capable / isolatable / 2 connections for flushing and venting with 1" AG
6 650 6 63
CHF / EUR 5'022.00

Show another 5 articles

Optional: main header / main pipe
6 650 2 75
CHF / EUR 0.00
surcharge / additional charge: both main lines 63 mm shut-off capable / isolatable
with PVC ball valves DN50 in the shaft
6 2 650 1
CHF / EUR 399.60
surcharge / additional charge: telescopic shaft cover
6 4 650 2
CHF / EUR 475.65
surcharge / additional charge: individual nozzle arrangement
6 2 650 3
CHF / EUR 150.00
Optional: distributor, collector bar 90 mm
6 2 650 090
CHF / EUR 0.00

manifold chamber Eco Blueline 600

Distribution, collector bar standard DA 90 mm Inlineetter type K 5-42 l/min main header / main pipe 63 mm shut-off capable / isolatable, smooth 2 pcs. flushing and venting valves with 1" AG cover B125

Article number:In stockList price

manifold chamber Eco Blueline 600 2-way
2 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 600 2 63
CHF / EUR 6'123.60
manifold chamber Eco Blueline 600 3-way
3 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 600 3 63
CHF / EUR 6'663.60
manifold chamber Eco Blueline 600 4-way
4 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 600 4 63
CHF / EUR 7'203.00
Optional: BHE circuit connection 32 mm, 50 mm
6 000 1 32
CHF / EUR 0.00
Optional: main header / main pipe 75mm / 90 mm
6 600 2 90
CHF / EUR 0.00

Show another 2 articles

surcharge / additional charge: shaft cover : sealing bottom plate with wall collar
6 4 600 1
CHF / EUR 536.80
surcharge / additional charge: shaft cover D400
6 4 600 400
CHF / EUR 468.75

algeo GeoSmart L630 manifold chamber

Distribution, collector bar with DA 90 mm Inlineetter type K 5-42 lZX/min main header / main pipe 63 mm shut-off capable / isolatable, with PVC ball valves DN50 2 pcs. Rinsing and venting valves with 1" AG 1 pcs. Manometer cover A35

Article number:In stockList price

algeo GeoSmart L630 manifold chamber 5-way
5 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 630 5 63
CHF / EUR 6'740.65
algeo GeoSmart L630 manifold chamber 6-way
6 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 630 6 63
CHF / EUR 7'230.00
algeo GeoSmart L630 manifold chamber 7-way
7 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 630 7 63
CHF / EUR 7'719.40
algeo GeoSmart L630 manifold chamber 8-way
8 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 630 8 63
CHF / EUR 8'210.60
algeo GeoSmart L630 manifold chamber 9-way
9 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 630 9 63
CHF / EUR 8'700.00

Show another 6 articles

algeo GeoSmart L630 manifold chamber 10-way
10 x BHE circuit connection 40 mm, shut-off capable / isolatable
6 630 10 63
CHF / EUR 9'191.25
Optional: BHE circuit connection 32 mm, 50 mm
6 630 1 32
CHF / EUR 0.00
Optional: main header / main pipe 75mm / 90 mm
6 630 2 90
CHF / EUR 0.00
surcharge / additional charge: shaft cover : sealing bottom plate with wall collar
6 4 630 1
CHF / EUR 536.80
surcharge / additional charge: shaft cover B125
6 4 630 125
CHF / EUR 1'303.15
surcharge / additional charge: shaft cover D400
6 4 630 400
CHF / EUR 1'871.25

separatus tool

Tool for preparation, connection and pressure test of the probe, from rotary peeler to installation reel.

Article number:In stockList price

separatus PE tube rotary peeler 51
8 6 51 001 01
In stock
CHF / EUR 689.00
separatus PE pipe chamfering tool 51
8 6 51 002 01
In stock
CHF / EUR 68.50
separatus pressure-testing and flushing tool 51
8 6 51 080 01
In stock
CHF / EUR 690.00
separatus Closing key for pressure-testing and flushing tool 51
8 6 51 080 02
CHF / EUR 70.00
separatus pressure cap 51 set
8 6 51 090 01
In stock
CHF / EUR 704.15

Show another 6 articles

separatus Hook key for pressure cap 51
8 6 51 090 02
CHF / EUR 50.00
separatus closure cap 51
Rotatable cap for closing the pipe, part of the pressure closure cap 51 set
8 6 51 090 03
CHF / EUR 341.20
separatus pressure cap 51 connector
Connection hose coupling, pressure gauge & ball valve
8 6 51 090 04
CHF / EUR 315.20
separatus Rounding mandrel
8 1 51 40 30
CHF / EUR 358.95
separatus welding holder 51
8 5 51 020 01
CHF / EUR 995.00
separatus installation reel
8 5 50 100 01
Upon request

Orders

Found what you need?

Orders and project prices run through the separatus team, with sizing advice if you wish.

Send request
